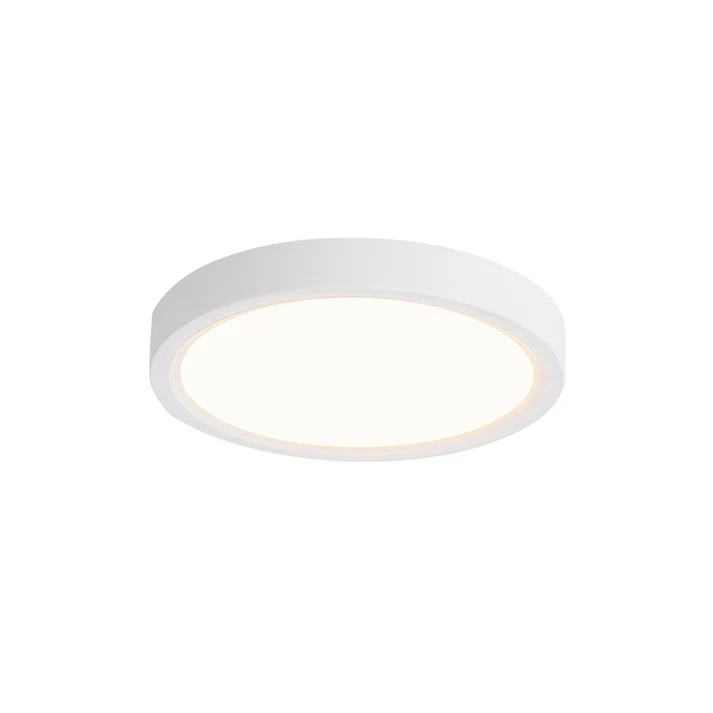

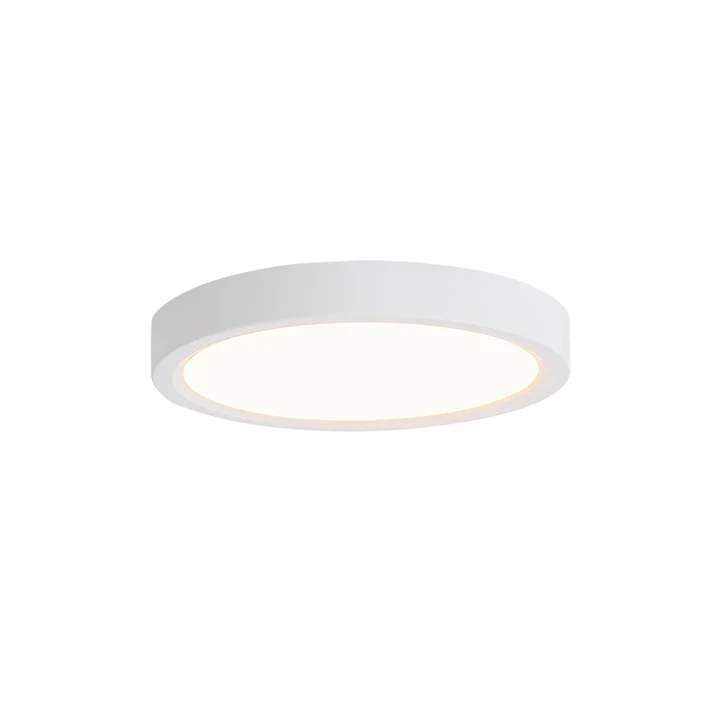

Mio FM47705

Description:

The Mio collection embodies simplicity and functionality, designed to highlight the beauty of a space with its clean flush mount design. Crisp white finishes blend seamlessly with most ceilings, keeping attention on the room’s purpose and aesthetics. Sleek and modern, Mio delivers understated sophistication while offering practical, focused illumination.

Features:

• Integrated LED with Selectable Color Temperature Options
• Designed for hallway, entryway, kitchen, and beyond
• Modern, Contemporary Style with Decorative Details
• Installation hardware included
• Easy assembly instructions included in box
• Dimmable
• Deliveried Lumens779lm*
• CEC Title 24 Ja8 Yes

Specifications:

• Dimensions 5.62”D x 0.75”H
• Materials                 Steel, Polymeric Material
• Body Finishes          White Glass
• Lamp12W,120V,Dimmable, TRIAC/ELV Compatible (Optional, Not Included)
• Luminous Flux1020lm
• Lamp Color     5000K, 4000K, 3500K, 3000K, 2700K, 5CCT
• Color Rendering90 CRI
• Lamp Life        50,000 hours
• Illumination DirectionDown
• Labels              CSA
• Location          Damp

Assembly Instructions

view assembly instructions (PDF)

Drawing
